Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KST
Model Number:
K-9000
Type:
Vehicle Mouted
Dimensions:
145mm x190mm x47mm
Frequency Range:
UHF400-470MHz OR VHF136-174MHz
Storage Channel:
200
Talk Range:
>30km
Warranty:
12 Months
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed with Color Box
Port
Shenzhen
Lead Time :
1-5 Days for Samples; 15 days for Bulk Orders.

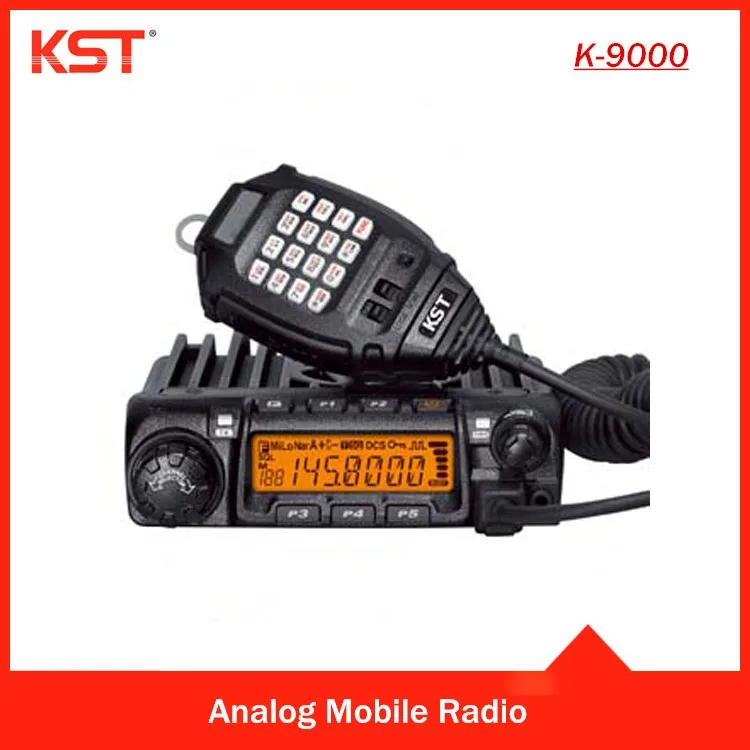

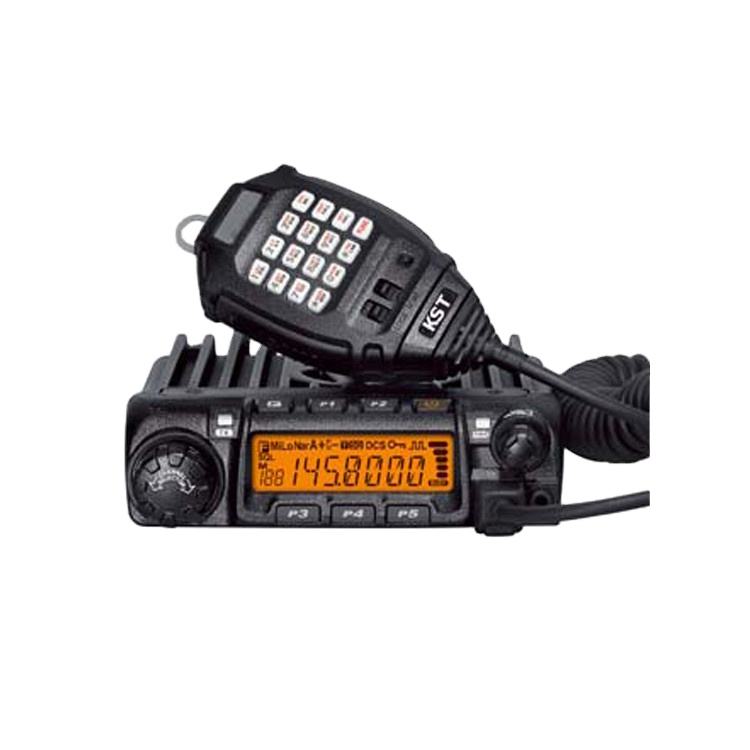

KST K-9000 Mobile/Base Radio



Main Features:



Frequency Range:   VHF:136-174MHz OR VHF245-245.9875MHz (220-260MHz)
                                      UHF: 400-480MHz
Output Power:        VHF: 10W/25W/60W
                               UHF: 45W/25W/10W
1750Hz ToneCTCSS/DCS setting & scanning
0-9 SQL grade settingFrequency/Channel scanning
High/Mid/Low power selectableVoice compander
Repeater offset shiftKeypad lock function
Contact bookBattery voltage display
DTMF/2 tone/5 toneANI ID(PTT-ID)
Remote kill/ stun/ activate/ reviveEmergenvy alarm
Wide/Narrow band settingTX inhibit
Busy Channel Lock-OutChannel name editing
Reverse frequencyTalk around
Scrambler(Optional)Voice prompt
Time-out TimerAuto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz



Specification:



     Item Number

                                    KM-9000

                                                                         General

Frequenvy Range

136-174/245-246/400-480MHz

Channel Capacity

200

Channel Spacing

5/6.25/8.33/10/12.5/15/20/25/30/50KHz

Freruency Stability

2.5ppm

Operating Temperature

-20°C ~ + 60°C

Operating Voltage

13.8V DC ± 15%

Dimension(HxWxD)

                           145mm x190mm x47mm

Weight(with bracket)

1200g

                                                                           Receiver

Reference Sensitivity

0.25V / 0.35V

Operating Bandwidth

60dB at 12.5KHz /70dB at 25KHz

Adjacent Channel Selectivity

60dB at12.5KHz 70dB at 25KHz

Inter-modulation Rejection

≥60dB/ ≥65dB

Spurious Response Rejection

≥70dB

Rated Audio Response

+1-+3dB

Rated Audio Distortion

<3%

FM Hum&Noise

≥40dB at 25KHz /≥45KHz at12.5KHz

                                                                             Transmitter

RF Power

45W/25W/10W(UHF)/60W/25W/10W(VHF)

Frequency Modulation

11kΦF3E / 16kΦF3E

Modulation Distortion

<5%

FM Noise

≥36dB at25KHz /≥40KHz  at12.5KHz

Adjacent Channel Power

≥60dB at12.5KHz /≥70KHz  at25KHz

Audio Response

+1-+3dB

Audio Distortion

<5%
