Waterproof IP67 K-208 Professional Two Way Radio for Marine Radio

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KST
Model Number:
K-208
Type:
Handheld
Dimensions:
105*58*37mm(without antenna)
Frequency Range:
UHF 400-470MHz
Storage Channel:
16
Talk Range:
5-10Km
RF power output::
UHF5W
Weight::
230g(without Antenna&Battery)
Battery Capacity::
Li-ion Battery
Channel Spacing::
12.5, 25kHz
Frequency Stablity:
±5PPM
Operating Temp::
-25°C~ +55°C
Operating Voltage::
7.4V
Antenna Impedance:
50Ω
Battery life::
about 12hrs(5-5-90 Duty Cycle)
Color::
Black
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Battery,Antenna,Battery Charger & Adapter,Belt Clip,Sling,User Manual
Port
Shenzhen
Lead Time :
1-5 Days for Samples; 15 days for Bulk Orders.

Professional Waterproof IP67 K208 Two Way Radio for Marine



Detailed Specification:

Frequency Range UHF:400-470MHz

Channel Capacity 16

Channel Spacing 12.5, 25kHz

Frequency Stability ±2.5PPM

Operating Temp. –25°C ~ +55°C

Operating Voltage 7.4V

Antenna Impedance 50Ω

Dimenstion 105 x 58 x 37 mm (without Antenna)

Weight 230g (without Antenna & Battery)

Battery Capacity 1500mAh Li-ion Battery

Battery Life about 12 Hrs (5-5-90 Duty Cycle)

Transmitter

RF Power (H/L) UHF5W

Modulation Limiting ≤5kHz

FM Distrotion ≤5%

Residual FM -40dB / -35dB

Adjacent Channel Power -65dB / -60dB

Spurious and Harmonics ≤-36dBm

Receiver

Sensitivity 0.15uV / 0.18uV

Adjacent Channel Selectivity 65dB / 55dB

Intermodulation Reject Ratio 55dB

Spurious Response Reject Ratio 60dB

S/N 40dB / 35dB

Rated Audio Power Output ≥400mW

Rated Audio Distortion ≤5%



Dual Band,Dual Frequency,Dual Display,Dual Standby



Main function/ Features:



  1. Work Mode: UHF 400-470MHz
  2. Scrambler Voice Encryption
  3. Power On Password& Message
  4. Timing Shutdown
  5. Digital FM Radio(76-108MHz)
  6. VOX(8 levels), TOT
  7. CTCSS(50 Groups), DCS(105 Group)
  8. Roger Beep
  9. Monitor/ 9 Squelch levels
  10. Channel Mode+ Frequency Mode
  11. Multi-fuction Scan
  12. Bright LED Flashlight
  13. Man Down System, Waterproof IP55
  14. High/ Low Power Selectable(5W/2.5W/1W)
  15. Busy Channel Lock-out(BCL)
  16. Wide/ Narrow Bandwidth(25KHz/12.5KHz)
  17. Power Saving+Low Power Alert
  18. Keypad Lock
  19. Wire Clone Function
  20. Programmable by Computer/ Keypad
  21. Squelch Tail Elimination
  22. Work with Reater, Offset& Reverse Frequency



Standard Accessories in the package



Radio+ Battery+ Antenna+ Belt Clip+ Operation Manual+ Battery Changer+ Adapter



 Applications

  • Service industry(Hotel, Restaurant, Supermarket, etc);
  • Security, Property Management;
  •  Police, Firefighters, Education, Public Utilities;
  • Constrution Sites & Transportation;
  • Warehouse, Ports & Logistic Industry;
  • Manufacturing industry

 Two way radio with compact and user-fricndly design

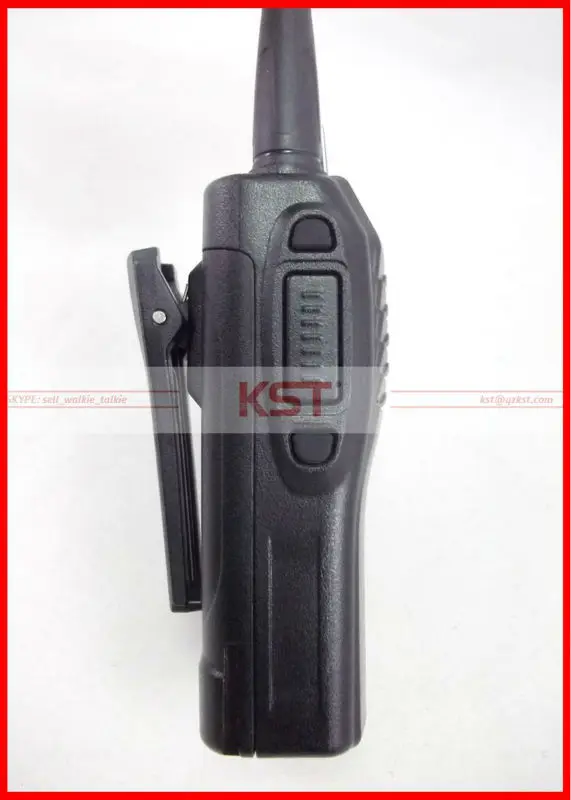

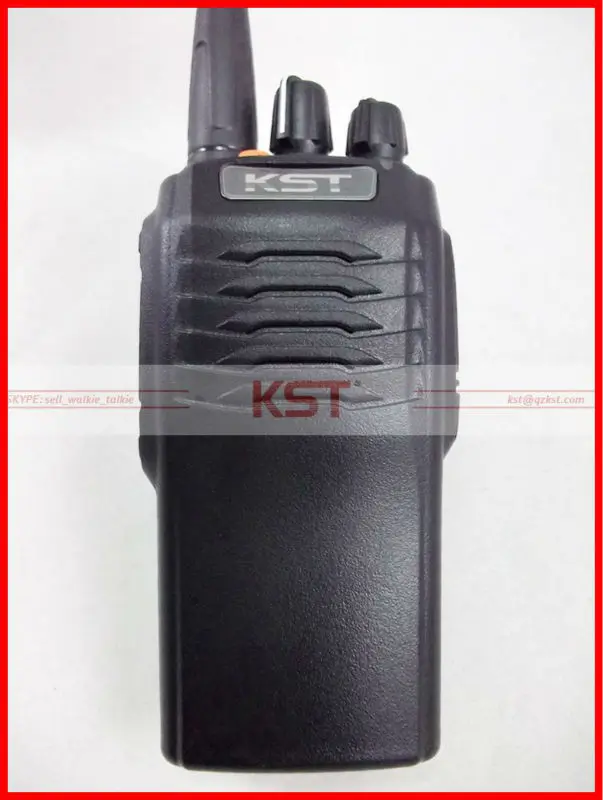

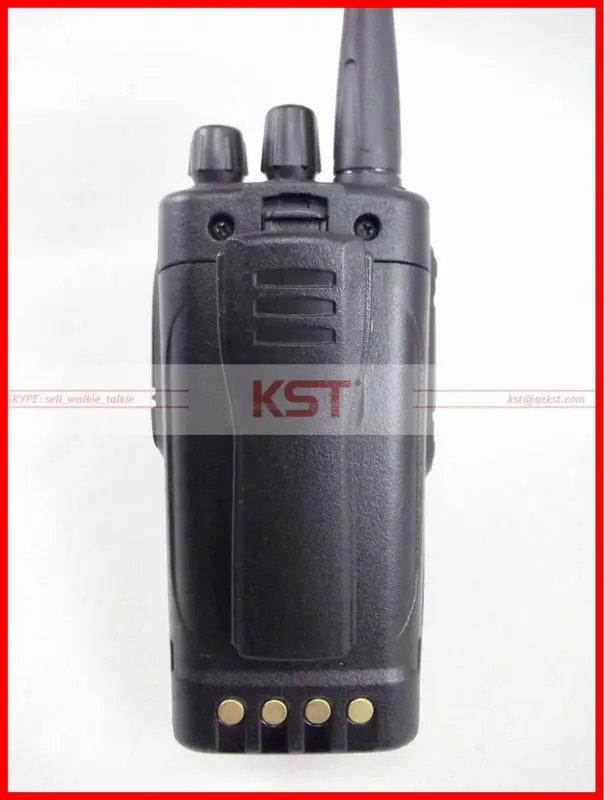

 K208.jpg K208 (5).jpg K208 (1).jpgK208 (2).jpgK208 (3).jpgK208 (4).jpg
