Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: KST
  • Model Number: K-209 Two Way Communication
  • Type: Handheld
  • Dimensions: 115 x 59 x 35 mm (Without Antenna)
  • Frequency Range: VHF136-174MHz / UHF400-470MHz
  • Storage Channel: 16
  • Talk Range: 5-10km
  • Certificate: CE/ RoHS
  • OEM / ODM: Available
  • Remote Kill: Yes
  • Voice Compander: Yes
  • Warranty: 12 Months
  • Whisper: Yes
  • Busy Channel Lock-out: Built-in
  • Squelch Tail Elimination: Yes
  • PTT ID: Yes
  • Power: 7W Two Way Communication

Packaging & Delivery

Packaging Details 1 Set Two Way Communication is Packed with Color Box
Delivery Time 1-5 Days for Samples; 3-5 days for Bulk Orders.

  CE Approval DTMF PTT ID Remote Kill K-209 Two Way Communication


Main
Functions/Features:

1.Frequency Range: VHF136-174MHz / UHF400-470MHz
2. 16 Memory Channels
3.RF Power: 7W

4.Voice Compander
5.Whisper Function
6.Squelch Tail Elimination
7. 2-tone; DTMF Code
8.PTT ID Setting
9.Remote Kill, Stun, Activate & Revive
10.Talk Around Function

11.VOX & TOT Functions
12.Chinese / English Voice Prompt
13.FM Raido
14.Busy Channel Lock-Out(BCL)

15.CTCSS (50Groups)/DCS (105Groups)
16.Monitor
17.Priority Scan Two Way Communication
18.High / Low Power Selectable
19.Wide/Narrow Bandwidth (25KHz / 12.5KHz)
20.Power Saving; Low Power Alert
21.Wire Clone Function
22.Programmable by Computer

23.Emergency Alert
24.Key side assignment
25.Roger Beep

26. 1800mAH Li-ion Battery
27.Compact design,practical function



Basic Specification:

General
Frequency Range
UHF:400-470MHz; 450-520MHz; 350-390MHz
VHF:136-174MHz; 220-260MHz
Channel Capacity
16
Channel Spacing
5, 10, 12.5, 20, 25,30, 50kHz
Frequency Stability
±2.5PPM
Operating Temp.
–30°C ~ +60°C
Operating Voltage
7.4V Two Way Communication
Antenna Impedance
50Ω
Dimenstion
115x 59x 35mm
Weight
250g(Include battery & antenna)
Battery Capacity
1800mAh (Li-ion Battery)
Battery Life
about 12 Hrs (5-5-90 Duty Cycle)
Transmitter
RF output power
7W
Modulation Type
16kΦF3E
Modulation Limiting
≤5kHz
Modulation Character
+3dB / -3dB
Spurious Radiation
≤7.5μW
Adjacent Ch. power
≥65dB
Max Fr. Deviation
≤5kHz
Occupied Bandwidth
≤16KHz
Receiver
Receiving Sensitivity
0.2μV
Adjacent Channel Selectivity
≥55dB
Inter-modulation
≥55dB
Co-channel suppression
≥-8dB
Audio Response
+2dB -10dB
Rated Audio Power Output
500mW
Rated Audio Distortion
≤5%

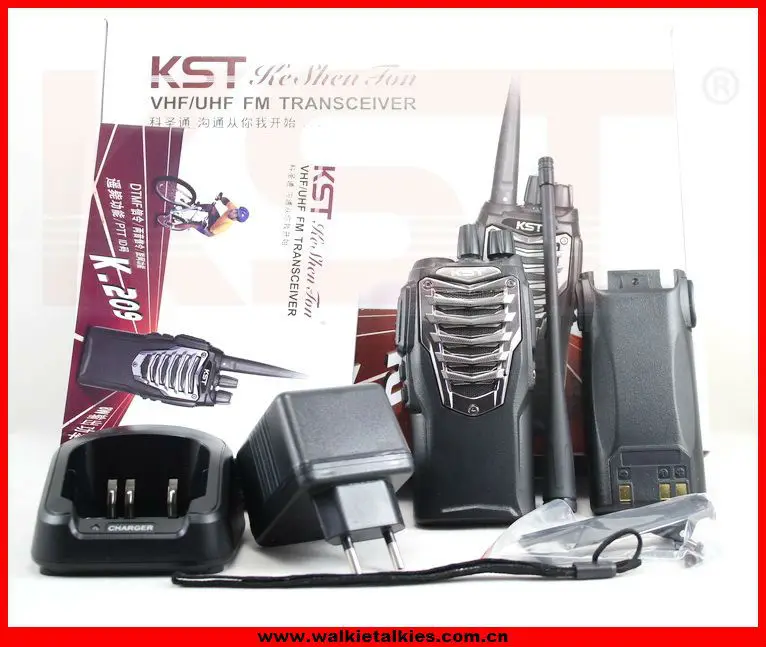

Standard Package of One Set Including:
1 x K-209 Two Way Communication
1 x Antenna
1 x Battery
1 x Charger

(we offer 220V CN type,if you need 110V US type or 220V europe type,

or 240V Aus/Nz type ,please contact us,some need add US$3 per charger.Thanks.)
1 x Belt Clip
1 x User's Manual


Note:
1.Warranty: One year.
2.Always in stock.
3.Delivery by DHL/UPS/EMS/FEDEX.
4. Please contact us at first time for bulk order. More discount waits for you.

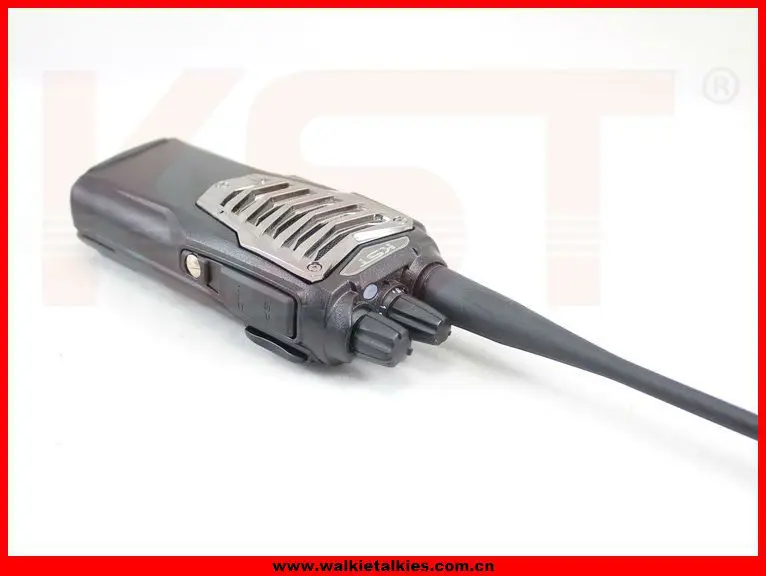

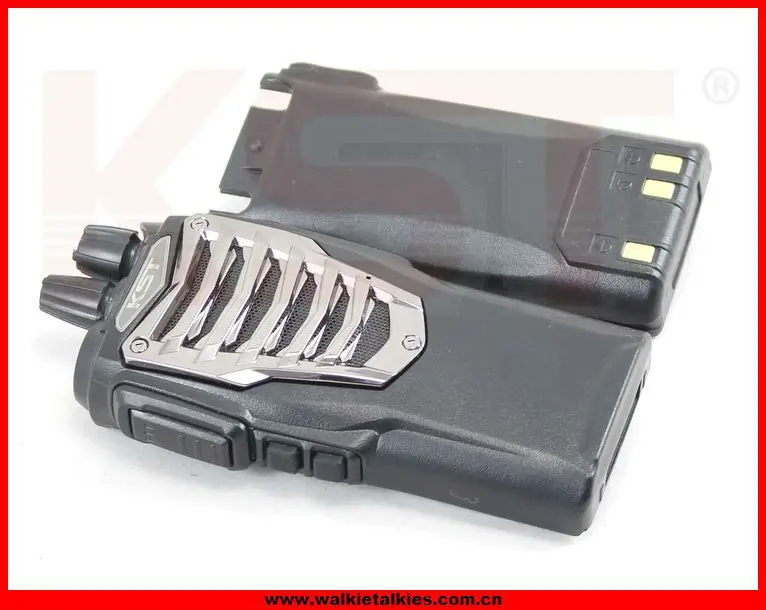

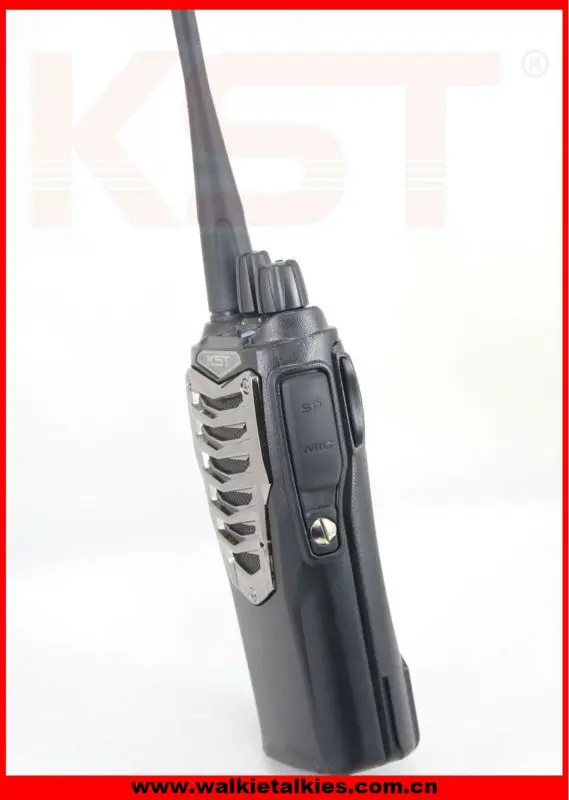

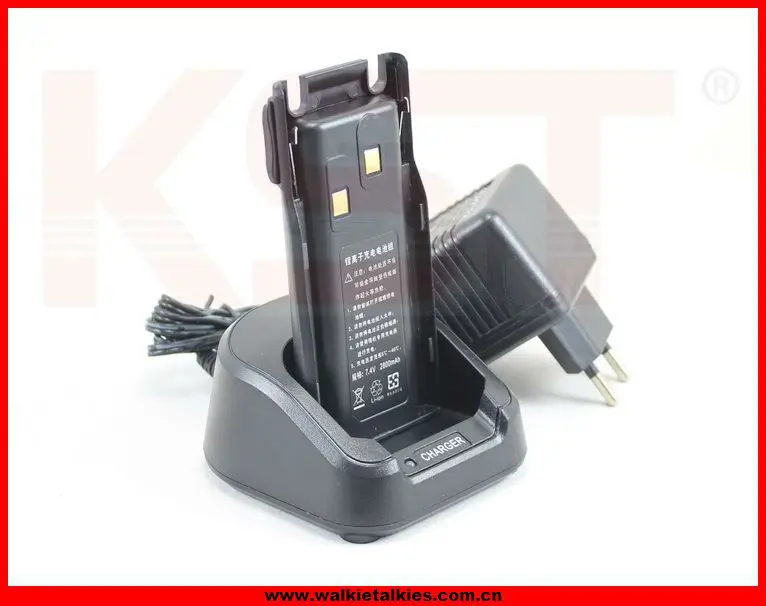

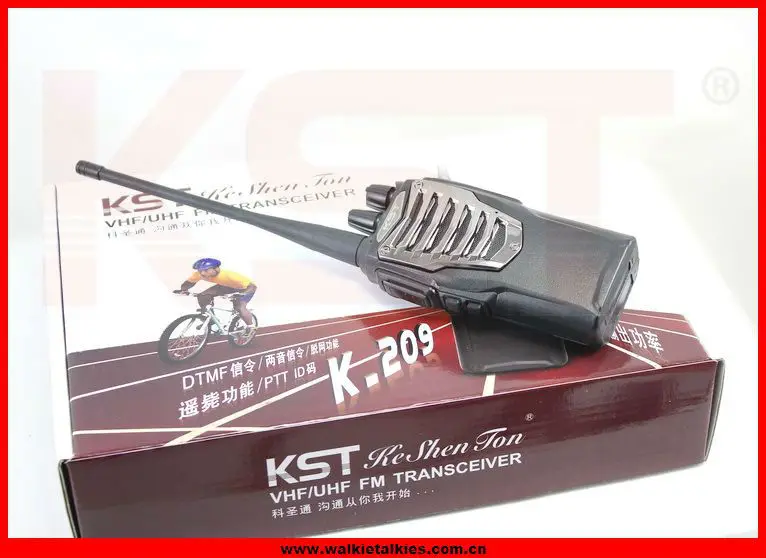

Pictures:





About Us:
1.We are two way radio manufacturer,also radios and accessories larger wholesaler at the

south of China; Our products have got CE / FCC & ROHS  certificates .
2.we successfully export our products to Europe, USA, Russia, India, Japan, HongKong, Taiwan, Southeast, Asia etc.
3.OEM service offered, we can design the packing box and LOGO mark as your request.
